SNA5000Aベクトルネットワークアナライザ
主な特徴
- 周波数レンジ：9 kHz ~ 8.5 GHz、100 kHz ~ 26.5 GHz
- 出力レベルの設定レンジ：-55 dBm ~ +10 dBm
- ダイナミックレンジ：125 dB
- 2/4ポートの散乱パラメータ、差動パラメータ、タイムドメインパラメータ測定に対応
- Qファクタ、帯域幅、フィルタの挿入損失の1ボタン測定に対応
- インピーダンス変換、フィクスチャシミュレーション、アダプタの取外し/挿入調整に対応
- スペクトラムアナライザとTDR機能のオプション
×
Measurement of Dielectric Material Properties
ダウンロード
詳細

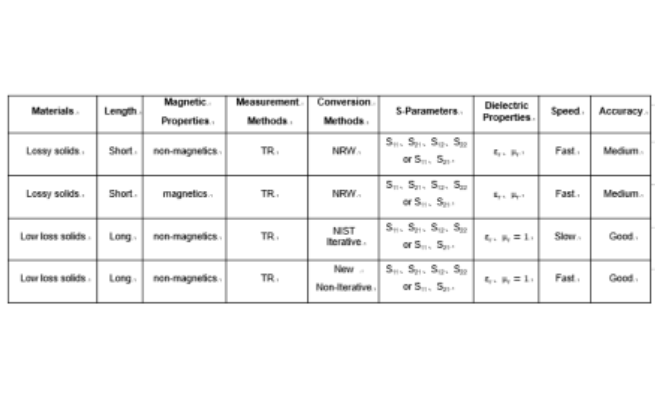

Material measurement is integral when developing solutions in the millimeter-wave (mmWave) frequency range, it can provide the electrical or magnetic characteristics of the materials, which proved useful in many research and development fields. PCB, anten
SNA Extended N-port and Full-N-port Calibration
ダウンロード
詳細

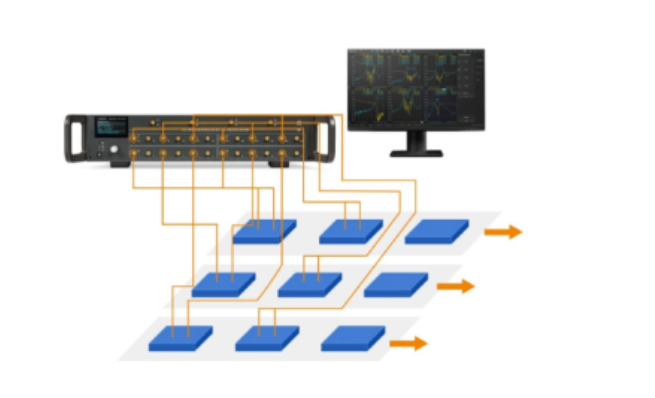

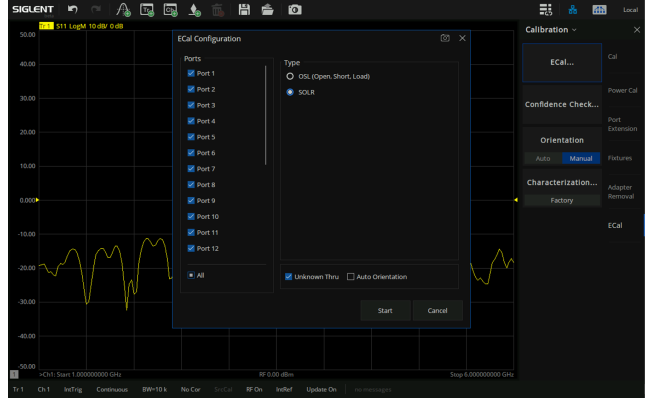

SNA is connected with SSM switch matrix to expand into N-port network analyzer. For example, vector network analyzer SNA5032A is expanded to 16 ports by using switch matrix SSM5124A, and perform full 16 ports calibration. The expansion process involves the following steps
How to Make Multi-Port Measurements
ダウンロード
詳細
With the increasing number of ports on components, testers need to perform accurate and fast multi-port network analysis. Optimizing the configuration of vector network analyzer (VNA) is the key to minimize test cost during the manufacturing stage.
